Main Components Of Equipment

1. Host by triple washing machine, filling machine, capping machine, racks, sealed windows, the main motor and transmission, transmission to send the bottle, cap sorting device and electrical control system and other components.

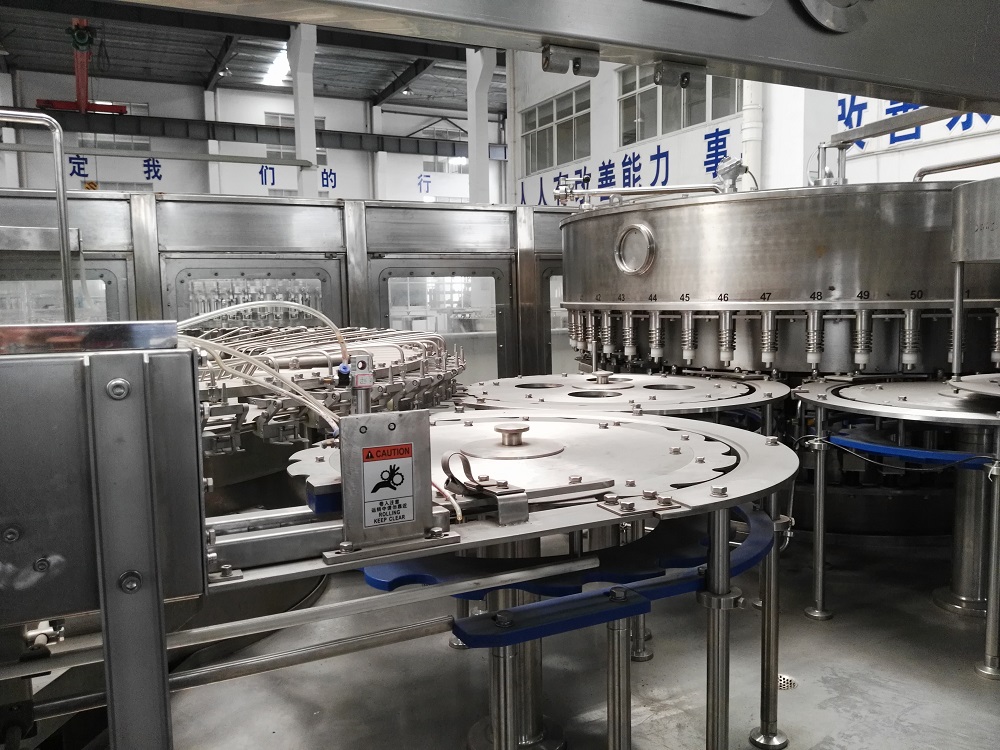

2. Washing machine reversing mechanism, primarily by the water distribution disc, bottle clip, the turntable, rails, shields, sprinkler, water tray components.

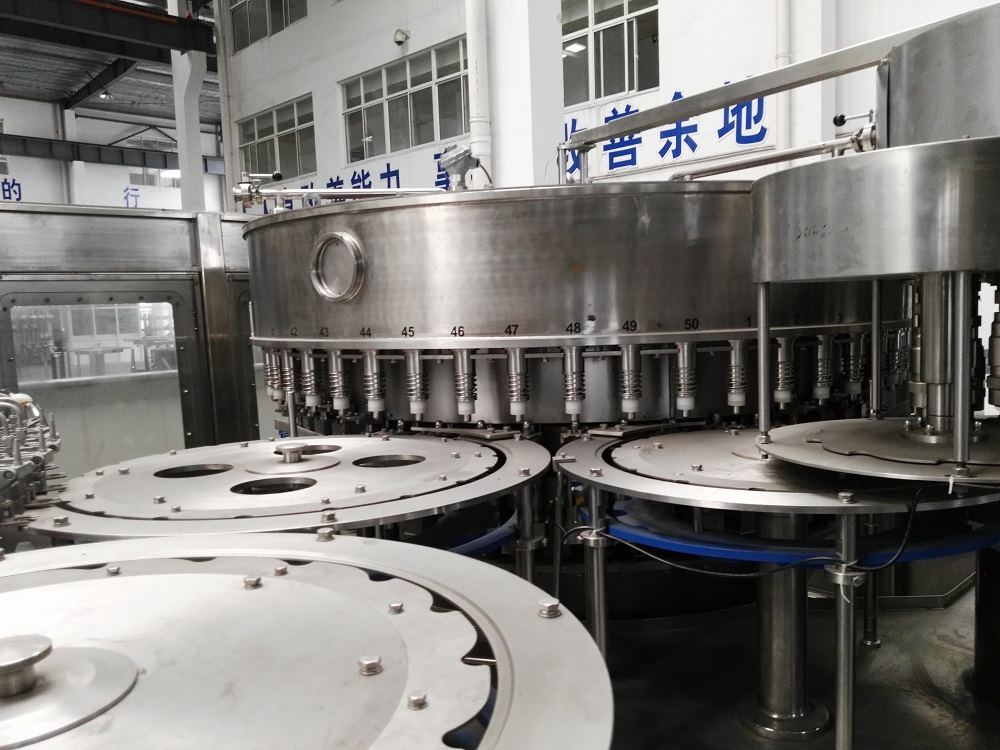

3. The filling mechanism, mainly by the hydraulic cylinder, filling valve, rails, lifting devices, card bottle lifting devices and other components.

4. The capping mechanism, by the management cover, a drop cap guide and capping machine composed of three parts.

5. The auxiliary (or optional) devices have bottles of water rushing reflux tank, air duct into the bottle out of the bottle and chain, but can also according to customer requirements on a bottle of artificial platform (or bottle machine), multi-row differential chain artificial row of bottles, automatic cover machine.

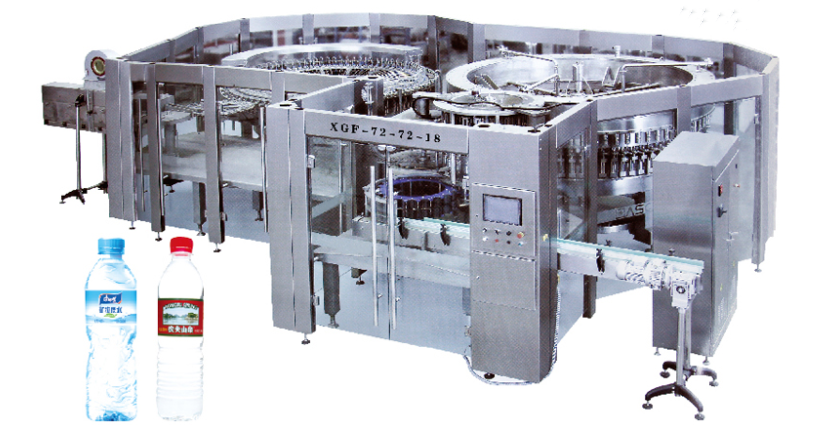

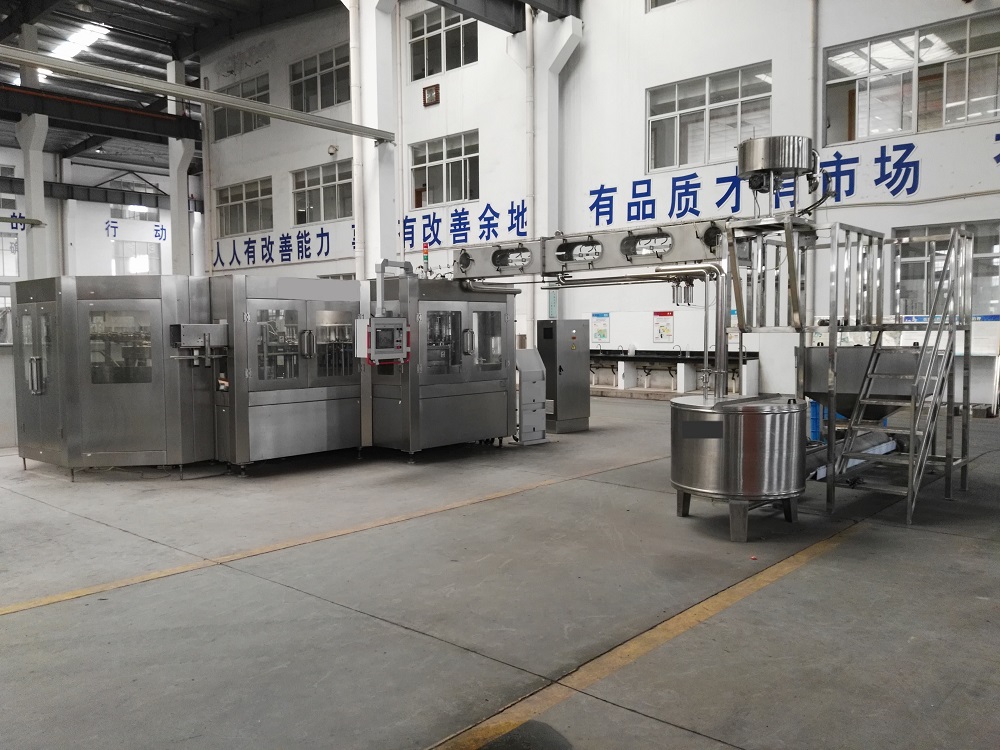

XGF Rinsing, Filling, Capping Machine

The machine washing, filling and capping three functions together in one body, the whole process is automatic for PET bottles, plastic bottle filling mineral water, purified water. The filling adopts gravity or micro-pressure filling operation is faster and more stable, so higher yields compared with the same specifications of the machine the machine, greater efficiency. The machine uses an advanced Mitsubishi programmable logic controller (PLC) to control the machine runs automatically with the host inverter with each other to make the device more stable and reliable. Photoelectric sensors to detect operating conditions of the various components, high degree of automation and easy operation.
